300
THROUGHPUT
(lcm/h)
530
Power
(KW/HP)
19
WEIGHT
(t)

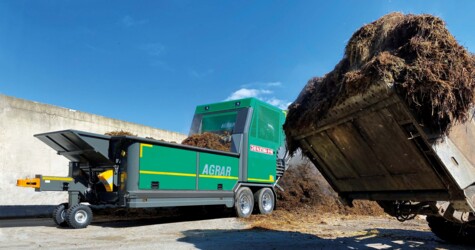

THE AGRAR SHREDDER
The BA 916 is a powerful and versatile JENZ shredder that is ideal for processing green waste, silage and bark. By installing stationary tools, good fuels can be produced from, for example, woody green waste or pre-crushed roots. With 530 HP, 19 t of total weight and 10.4 m transport length, the BA 916 is a real work horse. The rotor speed of over 1.100 rpm enables particularly fine material cut, even with difficult material such as manure.

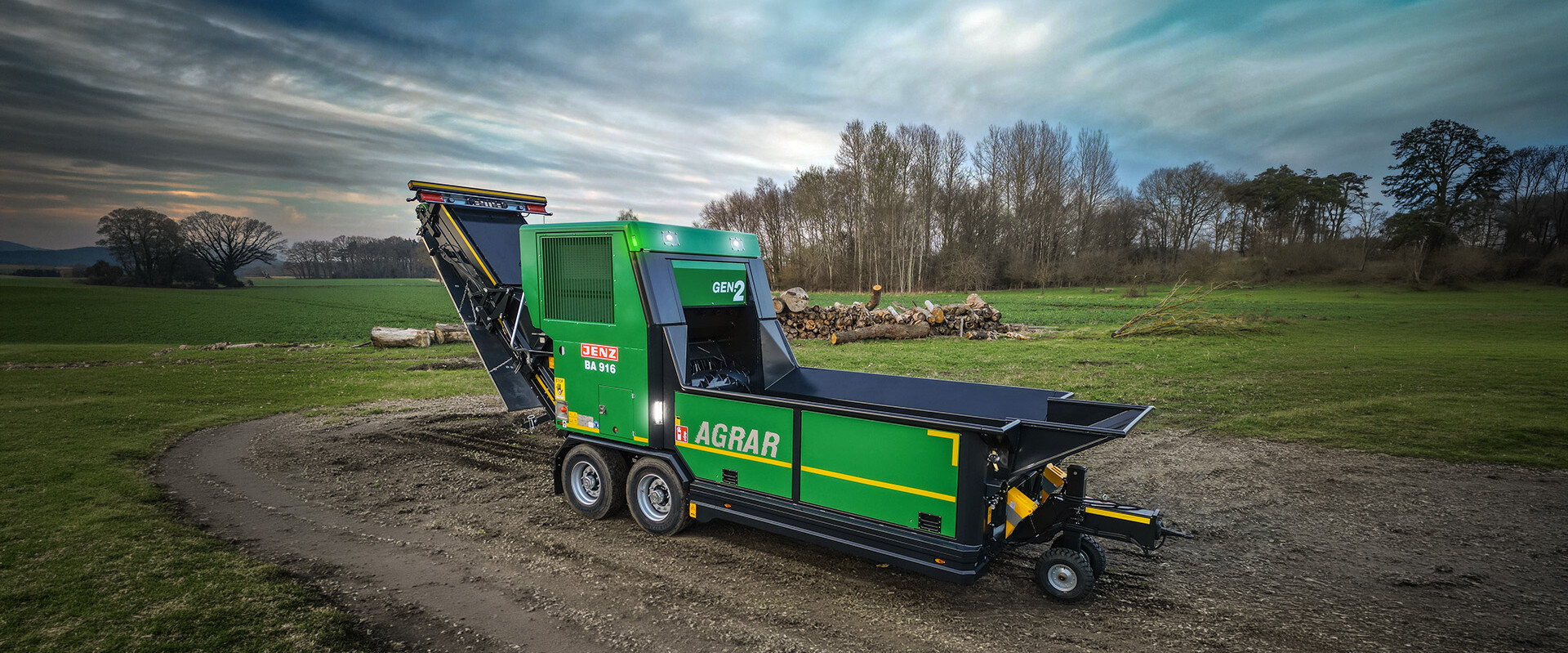

Generation 2
The consistently further developed version of the proven shredder for processing green waste, silage, and bark.
The most important innovations include: a significantly optimized intake system for an even more uniform material flow and increased throughput, an update of the “easy2advanced” machine control system for especially simple and intuitive operation, a greatly improved lighting concept to enhance operational and workplace safety, and an optimized rubber belt on the discharge conveyor for improved durability and higher magnetic separation efficiency.
Uniquely good
JENZ biomass processors are the ideal choice for companies that value efficiency, safety and convenience. They achieve uniform material quality, are economical in fuel consumption and reduce the burden on drivers. These shredders are also durable with a high tractive force and offer unique flexibility: One rotor for everything.
AGRAR package
easyprotect
tool System
easy2
CONTROL System
Professional maintenance concept
Screen basket replacement in under 10 minutes
Beet Mode BA 916 AGRAR
GFA Draw-in control system
DIP Roller Pressure System
IPS Impact Protection System
One rotor for everything
Operator Information System
DISCOVER ADDITIONAL HIGHLIGHTS
Mode Selecting System
The machine has three preset shredding modes that can be adjusted depending on the source material. For example, green waste can be assigned a separate mode, which is then called up at the push of a button. This saves time and enables even inexperienced operators to make optimum use of the machine.
REMOTE DIAGNOSTICS
To ensure smooth operation of JENZ machines, log data can be transmitted to JENZ on a daily basis. These data help to detect anomalies more quickly and, in the event of an error message, support can be provided quickly and reliably.
JES STANDBY MODE
The JES (JENZ Energy Saver) mode can shut down the engine to idle at the push of a button if work is interrupted. This stops the conveyor belt and the intake. To continue work, switch back to operation by pressing a button and restart the system.
ASSEMBLY / DISASSEMBLY ASSISTANT
With the setup and disassembly assistant, the JENZ machine is ready for use in just 1 minute. One push of a button is all it takes to raise the discharge conveyor, lower the hopper, and engage the rotor.
Smart Hydraulics
Intelligent hydraulic control allows precise adjustment of the machine to the material and the desired discharge. This ensures high processing quality and maximum efficiency. Diagnostic valves offer easy fault diagnosis - both for the operator and for JENZ Service.
ERGONOMIC MAINTENANCE ACCESS
The ergonomic maintenance access enables convenient and safe replacement of wear parts. The discharge belt can be swivelled to the side at the push of a button, providing free access to the rotor. Alternatively, a forklift or wheel loader can be moved right up to the rotor to remove heavy wear parts.
PROFESSIONAL TOOLBOX
The machine is equipped with a standard professional tooling system. This includes a swivelling toolbox, compressed air connection and work lights. If mounted to the machine, the toolbox can be easily swivelled to the rotor. This provides direct access to all important tools and spare parts at any time.
In addition, a compressed air hose reel with a 15 m line is located in the side of the conveyor intake. The reel is equipped with a quick-coupling valve, which allows quick and easy connection and disconnection of the line.
THE BA 916 – ONE SERIES,
NUMEROUS OPTIONS
 BA 916 | |
Performance | |
| Garden cuttings (lcm/h) | 280 |
| Bark (lcm/h) | 300 |
| Scrape wood (lcm/h) | 190 |
| Stumps (lcm/h) | not for permanent use |
Draw-in | |
| Draw-in width (mm) | 1500 |
| Draw-in height (mm) | 900 |
| Free loading length (mm) | 4400 |
| "Silo capacity (m3) " | 8 |
Grinding unit | |
| Number of hammers | 32 |
| Rotor diameter | 1040 |
Conveyor outfeed | |
| Maximum drop height (mm) | 4380 |
Main drive | |
| Diesel motor | MTU OM 471 |
| Power (kW/hp) | 390/530 |
| AdBlue | yes |
| Emission stage | 5 |
| Displacement (l) | 12,8 |
Chassis | |
| Top speed (km/h) | 80 |
| Chassis version | Central axle trailer |
Weight | |
| Weight in t * equipment-dependent | 18,1 |
| Permitted axle load (t) | 18 |
| Permitted support load (t) | 1 |
| Permitted total weight (t) | 19 |
Transport dimensions | |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 10,40 x 2,55 x 3,93 |
