STAY FLEXIBLE, SHARE THE RISK
JENZ offers drawn wood chippers in two versions:
PTO chippers and machines with add-on enginges

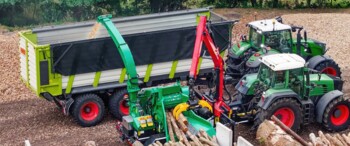

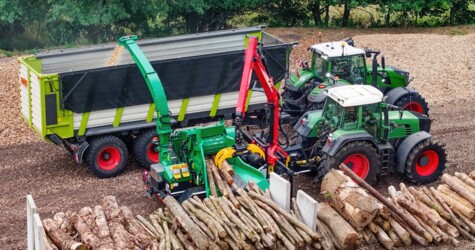

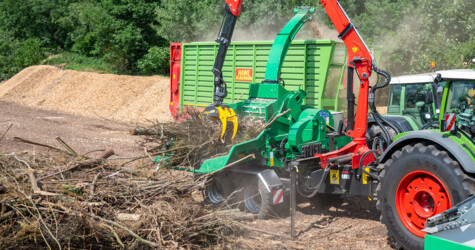

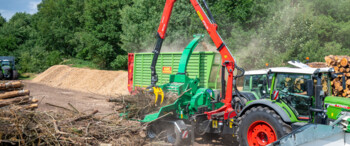

PTO chippers, as their name suggests, are driven by the tractor's PTO shaft. The heart of this chipper type is a proven driveline system. The necessary power requirement starts at 110 kW (150 hp) and goes up to 400 kW (544 hp) for the large tractor class.

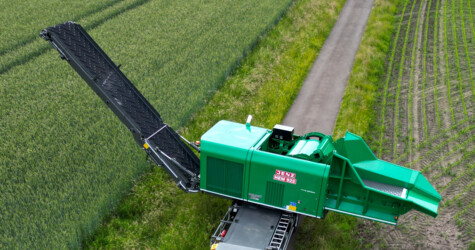

Chippers with add-on engines have an output of 390 to 597 kW (530 to 812 hp). They are distinguished between transverse and longitudinal superstructures. Transverse superstructures are highly mobile and very flexible in their use. Longitudinal superstructures, on the other hand, are semi-mobile and are used in port terminals, for example. Chippers in longitudinal superstructure design are fed by wheel loaders or handling excavators.
JENZ PTO CHIPPERS
Our series
In comparison
 HEM 5400 Z |  HEM 5600 Z |  HEM 583 Z |  HEM 593 Z |  HEM 841 Z | |
Performance | |||||
| Maximum throughput ca. (lcm/h) | 140 | 160 | 270 | 300 | 370 |
Draw-in | |||||
| Draw-in (WxH in mm) | 800 x 700 | 1000 x 700 | 1200 x 680 | 1400 x 680 | 1400 x 820 |
Grinding unit | |||||
| Rotor diameter | 820 | 820 | 820 | 820 | 1040 |
Material discharge | |||||
| Blower/Conveyor belt | Blower | Blower | Blower | Blower | Blower |
| hydraulic/mechanic | mechanic | mechanic | hydraulic | hydraulic | hydraulic |
Main drive | |||||
| Performance consumption (in kW/hp) | 110 - 220 / 150 - 300 | 140 - 309 / 190 - 420 | 132 - 350 / 180 - 475 | 132 - 350 / 180 - 475 | 180 - 400 / 244 -544 |
Weight | |||||
| Weight in t * equipment-dependent | 11,5 | 12,5 | 17 | 18 | 21,5 |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 5,70 x 2,55 | 5,70 x 2,55 | 6,60 x 2,55 | 6,70 x 2,55 | 7,00 x 2,55 |
JENZ Add-on engine machines
Our series
HEM 583 DQ
HEM 922 DQ
HEM 922 DL Terminal
HEM 922 DL
In comparison
 HEM 583 DQ |  HEM 922 DQ |  HEM 922 DL Terminal |  HEM 922 DL | |
Performance | ||||
| Maximum throughput ca. (lcm/h) | 270 | 430 | 500 | 430 |
Draw-in | ||||
| Draw-in (WxH in mm) | 1200 x 680 | 1200 x 900 | 1200 x 900 | 1200 x 900 |
Grinding unit | ||||
| Rotor diameter | 820 | 1040 | 1040 | 1040 |
Material discharge | ||||
| Blower/Conveyor belt | Blower | Blower | conveyor belt | Conveyor Belt |
| hydraulic/mechanic | hydraulic | hydraulic | ||
Main drive | ||||
| Diesel motor | MTU OM 471 LA | CAT C18 | CAT C18 | CAT C18 |
| Power (kW/hp) | 390/530 | 597/812 | 597/812 | 597/812 |
| AdBlue | Yes | no | no | no |
| Emission stage | 5 | 5 | 5 | 5 |
Chassis | ||||
| Top speed (km/h) | 80 | 80 | 80 | 80 |
| Chassis version | Central axle trailer | Central axle trailer | Semi-trailer | semi-trailer |
Weight | ||||
| Weight in t * equipment-dependent | 23,5 | 27,5 | 26,5 | 26 |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 8,70 x 3,00 x 4,00 | 9,15 x 3,00 x 4,00 | 11,00x2,55x4,00 | 10,30x2,55x4,00 |
