up to
300
300
Throughput
(srm/h)
160-
450
450
power
(KW)
820-1.040
Drum Diameter (mm)
Resilient
Durable
Stable
JENZ is not only known for its mobile biomass processing machines, but also for its stationary wood-chipping and microchipping machines. These machines are necessary as a preliminary stage for the production of pellets.
Stationary wood chippers are driven by an electric motor and customised to the individual needs of the operation. JENZ offers drum chippers for wood diameters from 180 mm to 700 mm.
JENZ Stationary Chippers
Our series
HE 561 E
For stationary use in medium-sized plants
Throughput rate: 150 srm/h
Throughput rate: 150 srm/h

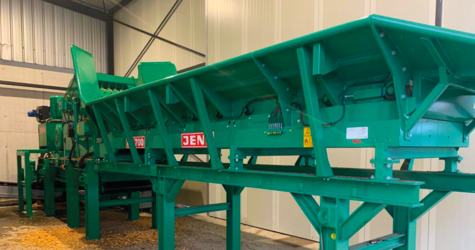

HE 700 E
For stationary use in large plants
Throughput rate: 300 srm/h
Throughput rate: 300 srm/h
In comparison
 HE 561 E |  HE 700 E | |
Performance | ||
| Maximum throughput ca. (lcm/h) | 150 | 300 |
Draw-in | ||
| Draw-in (WxH in mm) | 1000 x 650 | 1000 x 700 |
Grinding unit | ||
| Rotor diameter | 820 | 1040 |
| Blower/Conveyor belt | Optional conveyor belt | Optional conveyor belt |
Main drive | ||
| Electric motor | 50 Hz, IP 55, IE3, 400V | 50 Hz, IP 55, IE3, 400V |
| Power (kW) | 160-250 | 200-450 |
Weight | ||
| Weight in t * equipment-dependent | ca. 10,5 | ca. 12,5 |
