430
Throughput
(LCm/h)
812
Power
(HP)
1.040
Drum diameter
(mm)
For The
toughest
conditions
Wood chippers on track drives are the ideal solution for demanding operations in difficult terrain or when maximum mobility is required on the construction site. In this case, transport can be carried out with a standard low-bed low loader.
JENZ Tiger chippers are particularly well suited for use in industry. They are both robust and powerful and can be used even under the most challenging conditions. Equipped with a large longitudinal intake, long, large logs and bulky material can be processed with this machine. The powerful drive ensures fast, effective wood processing.

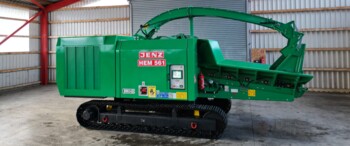

JENZ TIGER
Our track-driven series
HEM 922 DL Tiger
Powerful chipping in continuous operation with 812 HP
HEM 6600 DL TIger
Powerful and compact on caterpillar tracks
HEM 5400 DL Tiger
Coming soon!
HEM 5600 DL Tiger
Coming soon!
MORE DETAILS
 HEM 922 DL Tiger |  HEM 6600 DL Tiger | |
Performance | ||
| Maximum throughput ca. (lcm/h) | 500 | 300 |
Draw-in | ||
| Draw-in (WxH in mm) | 1200 x 900 | 1000x700 |
Grinding unit | ||
| Rotor diameter | 1040 | 820 |
Material discharge | ||
| Blower/Conveyor belt | Conveyor belt | conveyor belt |
| hydraulic/mechanic | hydraulic | |
Main drive | ||
| Diesel motor | CAT 18 | CAT C13B |
| Power (kW/hp) | 597/812 | 430/585 |
| AdBlue | no | yes |
| Emission stage | 5 | 5 |
Chassis | ||
| Top speed (km/h) | 1 | |
| Chassis version | Caterpillar track | Caterpillar Tracks |
Weight | ||
| Weight in t * equipment-dependent | 26 | 19 |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 9,36 x 2,49 x 3,21 |
