620
Troughput
(srm/h)
812
Power
(kW/HP)
Weight
(t)
The Heavy Duty Machine
The BA 1026 Tiger delivers maximum performance and durability in demanding continuous operation. With an extremely robust infeed hopper, a discharge height of up to 6.60 m at the discharge conveyor, and the powerful CAT C18 engine with 812 hp, it is optimally designed to meet the highest demands.
Thanks to the JENZ Twin Gear solution, different operating speeds at full engine power provide a proven and flexible solution for chipping and shredding. The robust caterpillar tracks and a total weight of 32 tons ensure stability, while smooth operation and impressive throughput make the Tiger a high-performance solution.
The BA 1026

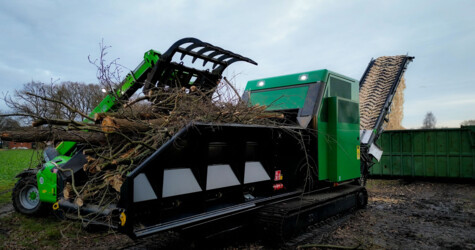

BA 1026 Tiger
Uniquely good
JENZ biomass processors are the ideal choice for companies that value efficiency, safety and convenience. They achieve uniform material quality, are economical in fuel consumption and reduce the burden on drivers. These shredders are also durable with a high tractive force and offer unique flexibility: One rotor for everything.
TwinGear System
easyprotect
Toolsystem
easy2
Control System
IPS Impact Protection System
DIP Roller Pressure System
Screen basket replacement in under 10 minutes
GFA Draw-In control system
One rotor for everything
Operator Information System
Neodym Overbelt Magnet
DISCOVER ADDITIONAL HIGHLIGHTS
Mode Selecting System
The machine has three preset shredding modes that can be adjusted depending on the source material. For example, green waste can be assigned a separate mode, which is then called up at the push of a button. This saves time and enables even inexperienced operators to make optimum use of the machine.
JES
Standby Mode
The JES (JENZ Energy Saver) mode can shut down the engine to idle at the push of a button if work is interrupted. This stops the conveyor belt and the intake. To continue work, switch back to operation by pressing a button and restart the system.
REMOTE DIAGNOSTICS
To ensure smooth operation of JENZ machines, log data can be transmitted to JENZ on a daily basis. These data help to detect anomalies more quickly and, in the event of an error message, support can be provided quickly and reliably.
Controlled
intake
The lower intake roller is positioned so that logs and roots in particular are fed to the rotor in controlled manner. This ensures uniform chip quality and smooth machine operation.
SPILLOVER BELT
The standard conveyor belt below the rotor catches the spillover material and conveys it to the discharge conveyor. This makes stationary assignments easily possible. To increase the screen surface of the BA 926, a screen base with screen plates can be installed instead of the chip baffler.
Smart Hydraulics
Intelligent hydraulic control allows precise adjustment of the machine to the material and the desired discharge. This ensures high processing quality and maximum efficiency. Diagnostic valves offer easy fault diagnosis - both for the operator and for JENZ Service.
the BA 1026
 BA 1026 Tiger | |
Performance | |
| Garden cuttings (lcm/h) | 520 |
| Bark (lcm/h) | 580 |
| Scrape wood (lcm/h) | 450 |
| Stumps (lcm/h) | 280 |
Draw-in | |
| Draw-in width (mm) | 1620 |
| Draw-in height (mm) | 960 |
| Free loading length (mm) | 4800 |
Grinding unit | |
| Number of hammers | 34 |
| Rotor diameter | 1120 |
Conveyor outfeed | |
| Maximum drop height (mm) | 4900 |
Material discharge blower | |
Main drive | |
| Diesel motor | CAT C18 |
| Power (kW/hp) | 597/812 |
| AdBlue | no |
| Emission stage | 5 |
| Displacement (l) | 18,1 |
Chassis | |
| Top speed (km/h) | 3 |
| Chassis version | Caterpillar Tracks |
Weight | |
| Weight in t * equipment-dependent | 32 |
Transport dimensions | |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 9,60 x 3,00 x 3,80 |
