up to
300
300
Throughput
(lcm/h)
430/
585
585
Power
(kW/HP)
820
Drum diameter
(mm)
Powerful and compact

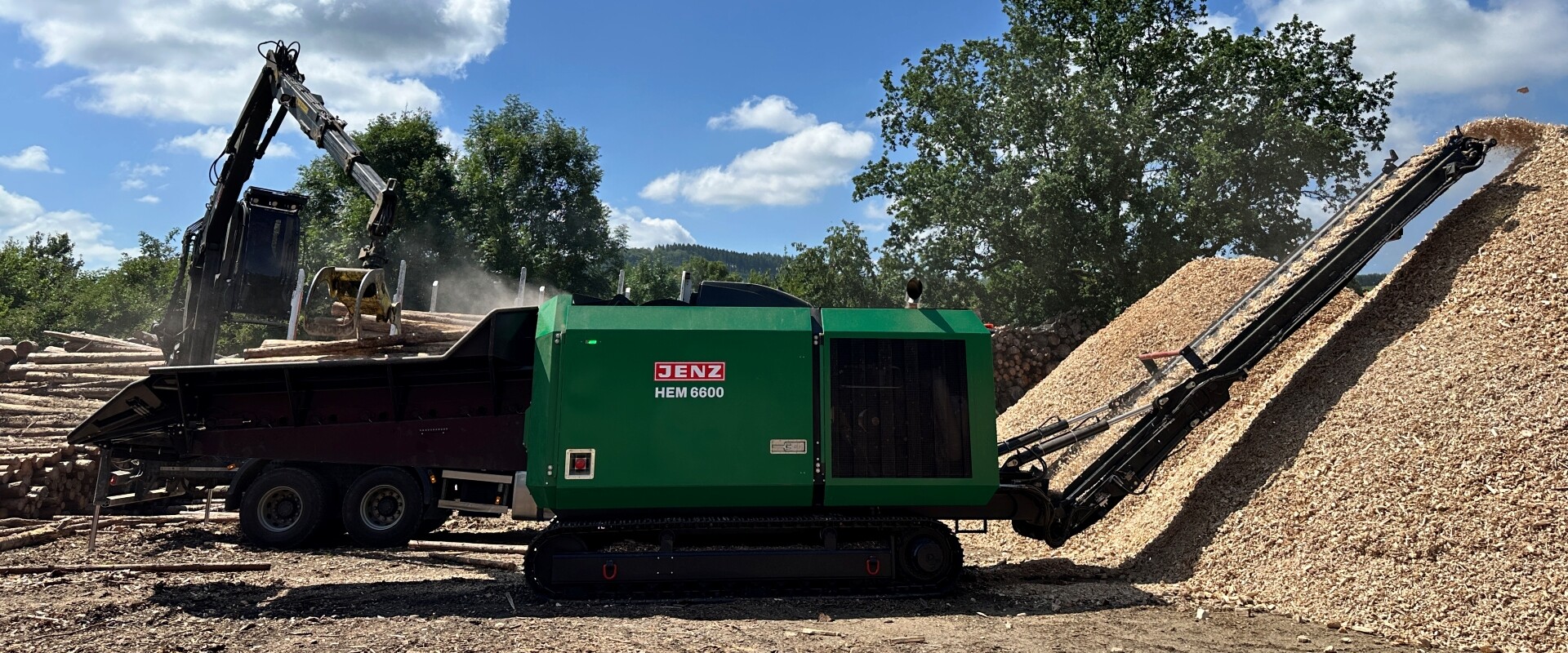

New to the range: the HEM 6660 DL Tiger combines compact dimensions with high flexibility and a wide range of applications. Based on the new chipping units from the 5400 and 5600 series, this wood chipper impresses with a revised machine design modelled on the HEM 922 DL. Excellent accessibility for maintenance reduces downtime, whilst modern, reliable CAT engines compliant with Stage V emissions standards ensure powerful performance.
Uniquely good
JENZ wood chipper are the ideal choice for companies that value economy, ease of use and flexibility. The chippers are fuel-efficient and take the burden off the driver thanks to ergonomic cab concepts and intelligent maintenance and control solutions.
easy2advanced
Control System
The new easy2advanced machine control system is a comprehensive update of the familiar easy2 control system. It supports the driver with active feedback, enables flexible, user-orientated settings and ensures a reliable crop flow. This allows the machine to be used even more productively and efficiently.
D1.3
Drum
The D1.3 drum impresses with even higher efficiency and outstanding wood chip quality. The optimized chip discharge flow reduces the proportion of fines as well as material jams, while simultaneously lowering diesel consumption. The thickness knife system ensures consistently coarse wood chips, while the infeed setting via wedges allows precise adjustment. The regrindable knives ensure maximum service life and cost efficiency. Thanks to its high mass moment of inertia, the D1.3 runs exceptionally smoothly, protects the drivetrain, and consistently delivers first-class wood chips.
CFA
Draw-In Control System
The CFA and CFA2 intake controls automatically adjust the intake speed to ensure that the chipper is utilised evenly and in a way that is gentle on the machine, and that the wood chips are of optimum quality. CFA adjusts the infeed speed depending on the rotor speed. CFA2 adjusts the infeed speed depending on the opening angle of the upper roller.
DIP
Roller Pressure System
Due to the variable pre-load pressure of the upper roller, the chipper can adapt to any material. Shrub trimming, for example, requires a higher pressure, while logs are fed in almost without pressure. Thanks to its easy adjustment to respective requirements, the chipper works efficiently and achieves a consistent output.
Efficient screening technology
The innovative screen baskets reliably prevent excessive lengths with a minimum of fine particles. This is particularly noticeable in the processing of cut shrubbery, where the wood is often drawn in crosswise.
Available sizes:
S (private heating systems)
M (medium-sized heating systems)
NEW: L (large-sized heating systems, Combined heat and power plants)
XL (Combined heat and power plants)
Available sizes:
S (private heating systems)
M (medium-sized heating systems)
NEW: L (large-sized heating systems, Combined heat and power plants)
XL (Combined heat and power plants)
Smart
Hydraulic
The CFA and CFA 2 intake control systems forward material-dependent information to the easy2 control system. The intelligent JENZ Smart Hydraulic system quickly and sensitively adjusts the intake speed. In addition, top roller pressure and the maximum intake speed can be set by the operator at the push of a button.
IPS Impact Protection System
With the IPS (Impact Protection System), sensors detect inadmissible vibrations caused by foreign bodies such as stones or iron parts. The system activates a protection programme that, for example, stops material discharge in 0.8 seconds. This protects the machine from expensive consequential damage and reduces unplanned downtime to a minimum.
More Details
 HEM 6600 DL Tiger | |
Performance | |
Draw-in | |
| Draw-in (WxH in mm) | 1000x700 |
Grinding unit | |
| Rotor diameter | 820 |
Material discharge | |
| Blower/Conveyor belt | conveyor belt |
| hydraulic/mechanic | hydraulic |
Main drive | |
| Diesel motor | CAT C13B |
| Power (kW/hp) | 430/585 |
| AdBlue | yes |
| Emission stage | 5 |
Chassis | |
| Top speed (km/h) | 1 |
| Chassis version | Caterpillar Tracks |
Weight | |
| Weight in t * equipment-dependent | 19 |
Transport dimensions | |
| Dimensions transport position* (LxWxH in m) * equipment-dependent | 9,36 x 2,49 x 3,21 |
